  Grade 7 Art
• 2.

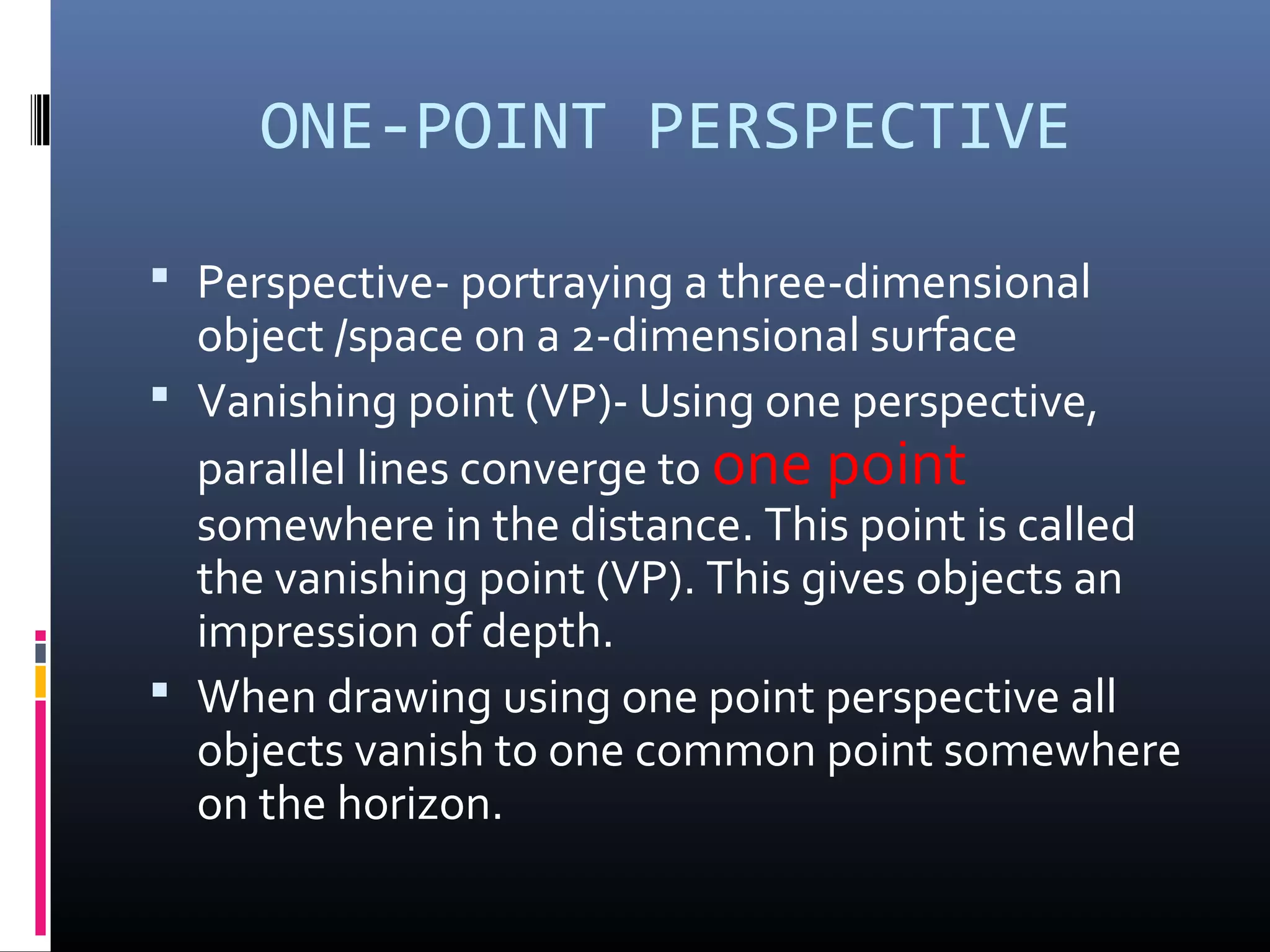

  ONE-POINT PERSPECTIVE  Perspective-portraying a three-dimensional object /space on a 2-dimensional surface  Vanishing point (VP)- Using one perspective, parallel lines converge to one point somewhere in the distance. This point is called the vanishing point (VP). This gives objects an impression of depth.  When drawing using one point perspective all objects vanish to one common point somewhere on the horizon.
• 3.

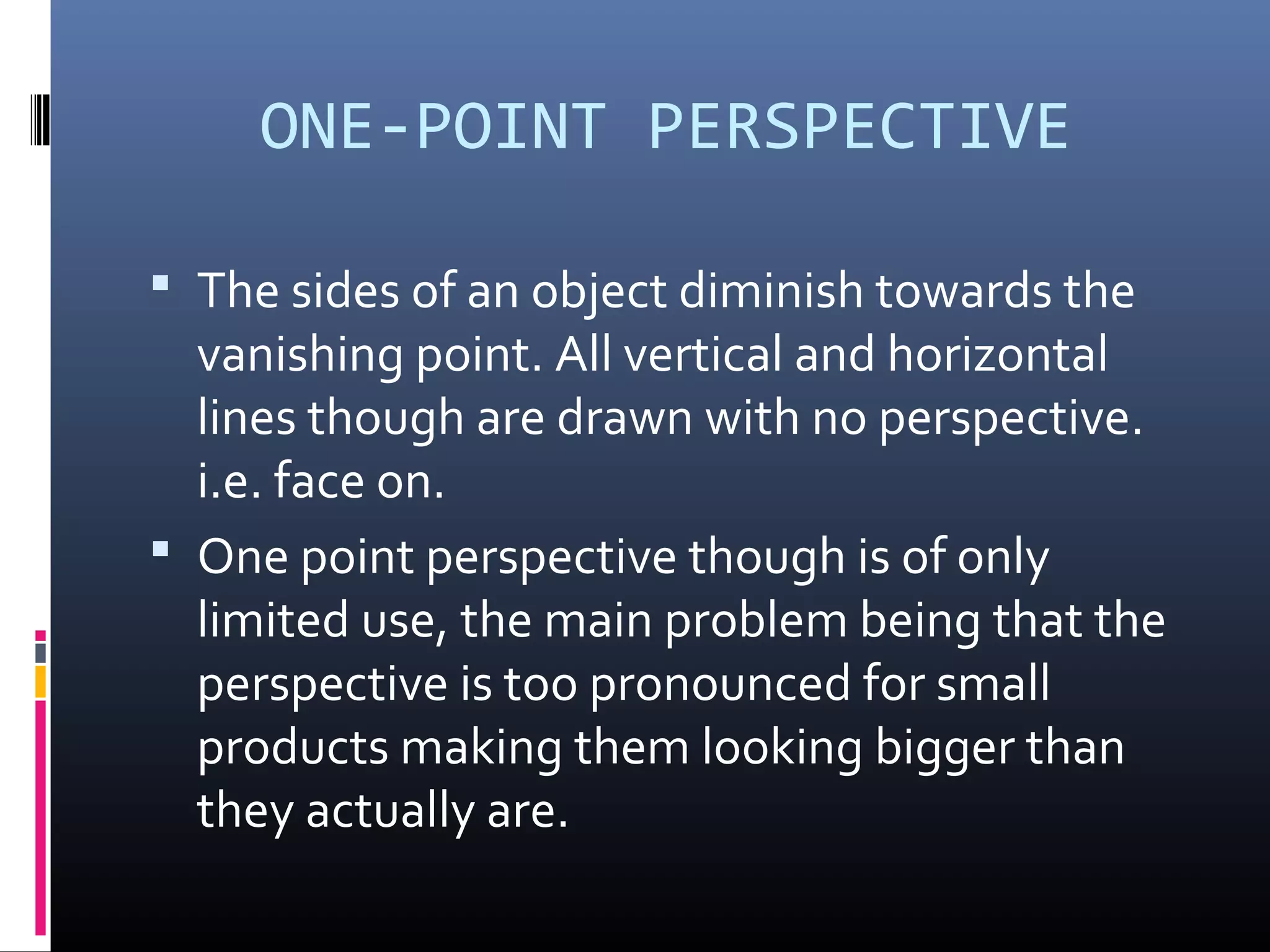

  ONE-POINT PERSPECTIVE  Thesides of an object diminish towards the vanishing point. All vertical and horizontal lines though are drawn with no perspective. i.e. face on.  One point perspective though is of only limited use, the main problem being that the perspective is too pronounced for small products making them looking bigger than they actually are.
• 5.

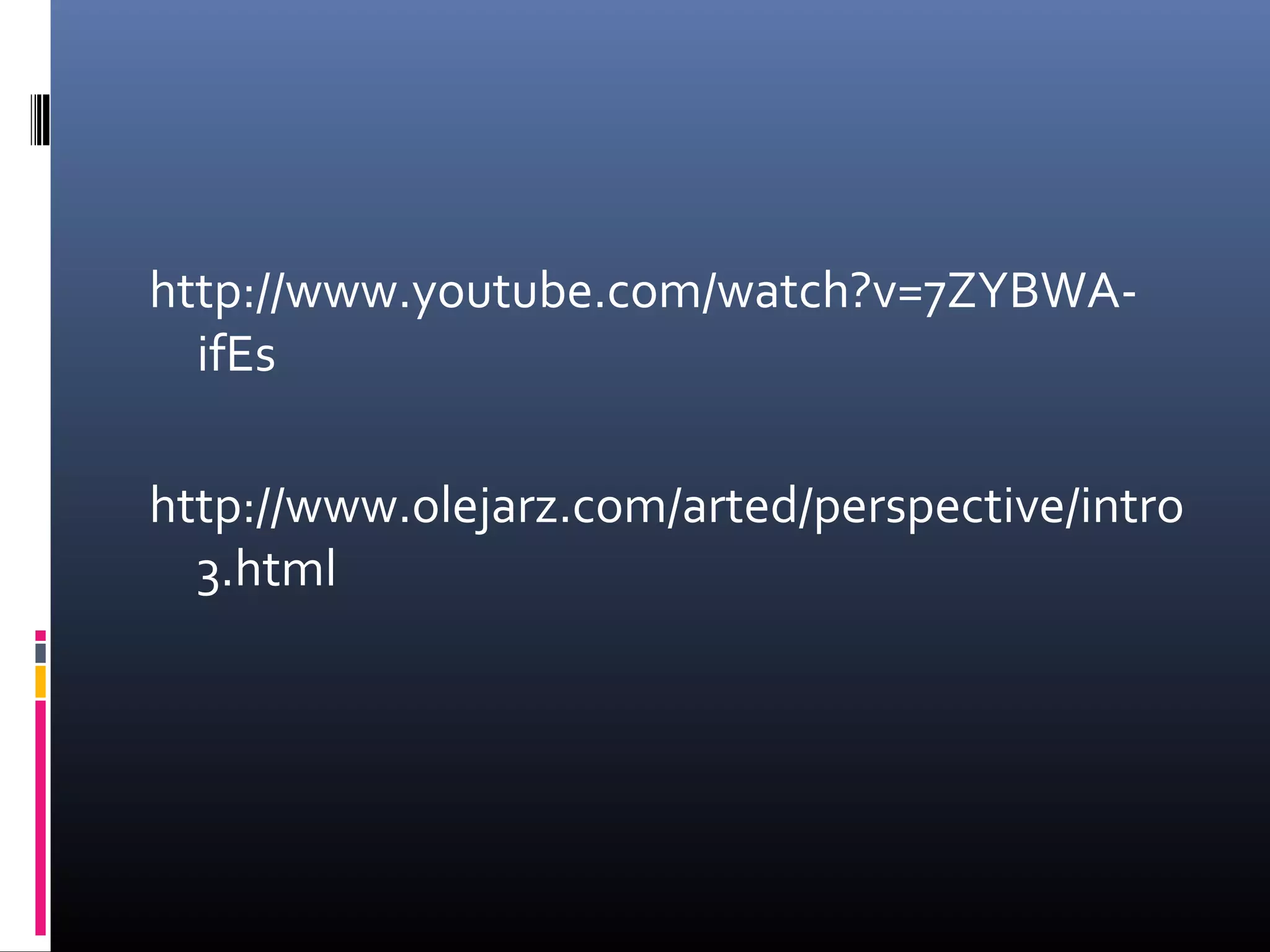

  http://www.youtube.com/watch?v=7ZYBWA- ifEs http://www.olejarz.com/arted/perspective/intro 3.html
• 6.

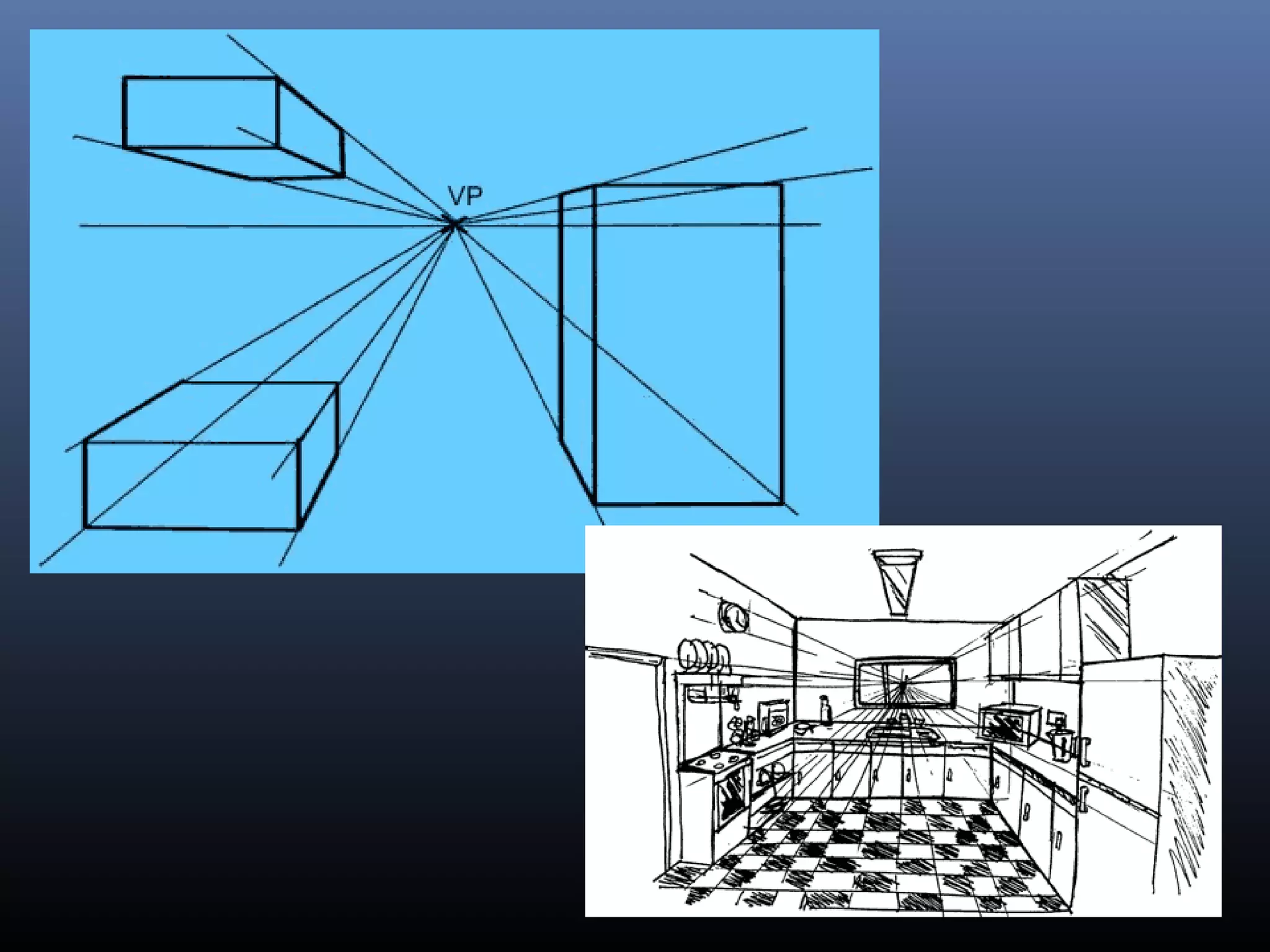

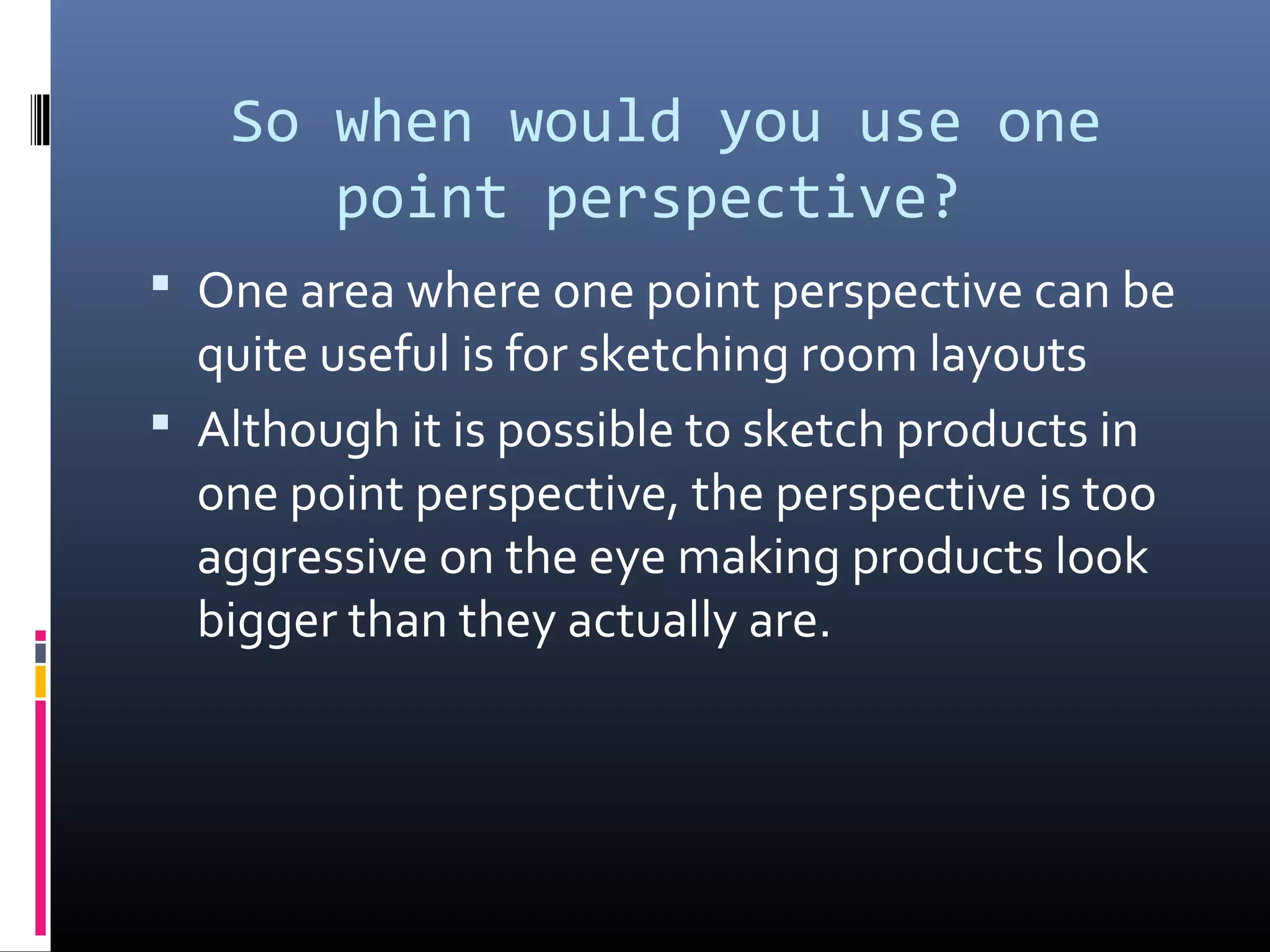

  So when wouldyou use one point perspective?  One area where one point perspective can be quite useful is for sketching room layouts  Although it is possible to sketch products in one point perspective, the perspective is too aggressive on the eye making products look bigger than they actually are.
• 7.
  V P
• 8.

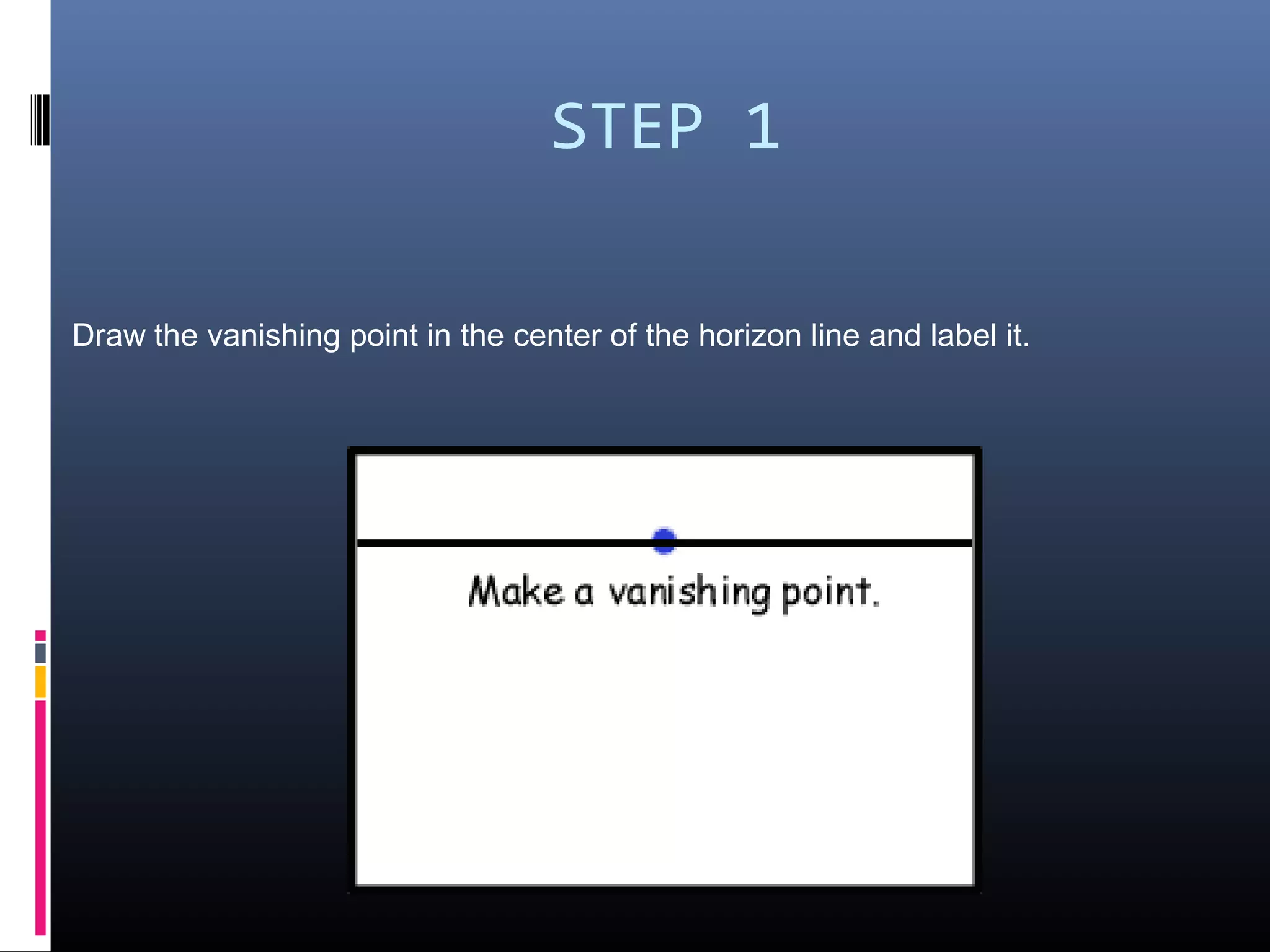

  STEP 1 Draw thevanishing point in the center of the horizon line and label it.
• 9.

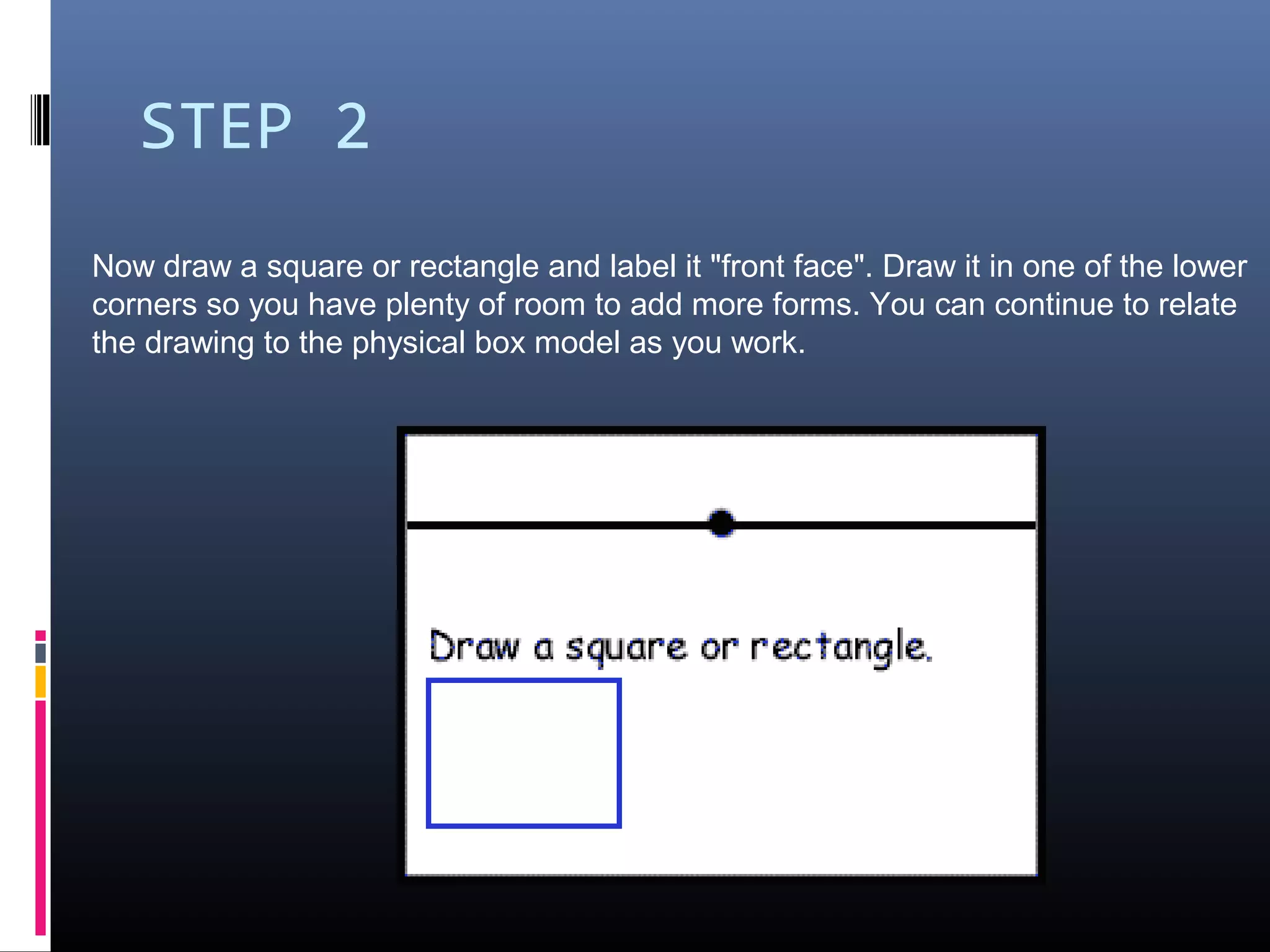

  STEP 2 Now drawa square or rectangle and label it "front face". Draw it in one of the lower corners so you have plenty of room to add more forms. You can continue to relate the drawing to the physical box model as you work.
• 10.
  STEP 3 Now connectthree corners of your rectangle or square to the vanishing point. These are orthogonals. Draw lightly so you can erase!
• 11.
  STEP 4 Draw ahorizontal line to end your form.
• 12.
  STEP 5 Draw avertical line down from the horizontal line to complete the side.
• 13.
  STEP 6 Erase theremaining orthogonals.
• 14.
  REMINDER  All perspectivedrawings start with the basic geometric shapes.
