. 2015 Feb 9;112(8):2503–2508. doi: 10.1073/pnas.1424934112

Glucagon receptor antibody completely suppresses type 1 diabetes phenotype without insulin by disrupting a novel diabetogenic pathway

May-Yun Wang a, Hai Yan b,c, Zhiqing Shi b,c, Matthew R Evans d, Xinxin Yu a, Young Lee a, Shiuhwei Chen e, Annie Williams f, Jacques Philippe g, Michael G Roth d,1, Roger H Unger a,h,1
PMCID: PMC4345619  PMID: 25675519

Significance

Subcutaneous injections of insulin sustain life in mammals unable to produce insulin (type 1 diabetes) but do not prevent hyperglycemic and hypoglycemic swings or decrease hemoglobin A1c levels to normal amounts. In mice treated with insulin alone, repeated episodes of transient elevated blood glucose cause long-term damage. We show that in mice with type 1 diabetes treated with insulin, the transient high blood glucose levels require production of glucagon, a hormone that will cause the liver to produce more glucose. Blocking the action of glucagon with an antibody to the glucagon receptor completely normalizes blood glucose and hemoglobin A1c in the complete absence of insulin therapy. Suppressing glucagon action in combination with low-dose insulin would be a superior treatment for type 1 diabetes.

Keywords: glucagon receptor, antibody, type 1 diabetes, insulin

Abstract

Insulin monotherapy can neither maintain normoglycemia in type 1 diabetes (T1D) nor prevent the long-term damage indicated by elevated glycation products in blood, such as glycated hemoglobin (HbA1c). Here we find that hyperglycemia, when unaccompanied by an acute increase in insulin, enhances itself by paradoxically stimulating hyperglucagonemia. Raising glucose from 5 to 25 mM without insulin enhanced glucagon secretion ∼two- to fivefold in InR1-G9 α cells and ∼18-fold in perfused pancreata from insulin-deficient rats with T1D. Mice with T1D receiving insulin treatment paradoxically exhibited threefold higher plasma glucagon during hyperglycemic surges than during normoglycemic intervals. Blockade of glucagon action with mAb Ac, a glucagon receptor (GCGR) antagonizing antibody, maintained glucose below 100 mg/dL and HbA1c levels below 4% in insulin-deficient mice with T1D. In rodents with T1D, hyperglycemia stimulates glucagon secretion, up-regulating phosphoenolpyruvate carboxykinase and enhancing hyperglycemia. GCGR antagonism in mice with T1D normalizes glucose and HbA1c, even without insulin.

Ninety years of insulin treatment in patients with type 1 diabetes (T1D) have made it clear that insulin alone cannot normalize glucose homeostasis or glycated hemoglobin (HbA1c) levels. Even optimally controlled patients may exhibit postprandial surges of glucose levels to three or four times normal (1, 2), which may explain why HbA1c levels below 6% are so rare in patients with T1D. Current thinking attributes these spikes in peripheral plasma glucose to insufficient uptake of incoming dietary glucose by peripheral target tissues as a result of a lack of insulin. As a consequence, they are often managed by a preprandial bolus of insulin and restriction of dietary carbohydrate. This strategy results in chronic iatrogenic hyperinsulinemia (3) in patients with “well-controlled” T1D and is responsible for a high incidence of hypoglycemic events, which can be life-threatening.

In nondiabetic subjects, a glucose load suppresses glucagon levels by stimulating an acute transient rise in paracrine insulin from β-cells juxtaposed to the glucagon-producing α cells (4–6). This glucagon suppression converts the liver from an organ of glucose production to an organ of glucose storage (7). In T1D, paracrine insulin is lacking and is replaced by peripherally injected insulin. The resulting intraislet insulin concentrations are but a small fraction of the paracrine concentrations of undiluted insulin that suppress glucagon in nondiabetic subjects (8, 9). In 1974, it was reported that hyperglycemia paradoxically stimulates glucagon secretion in dogs with chemically induced diabetes (10). More recently, plasma glucagon concentrations were reported to rise, with a tripling of hepatic glucose production, in normal rats continuously infused with glucose at a constant rate (11). Thus, there is evidence that in the absence of adequate insulin, elevated glucose might stimulate glucagon production, which in turn aggravates hyperglycemia. In this setting, the liver would not be reprogrammed to store incoming glucose but, rather, would continue to produce glucose as if it were still in the unfed state (12). This may play a major role in postprandial hyperglycemia (10).

Here we find that in T1D, hyperglycemia stimulates, rather than suppresses, glucagon secretion. This suggests that in T1D, a positive hormonal feedback loop enhances hyperglycemia by adding endogenously produced glucose to diet-derived glucose. If this is an important factor in the hyperglycemic surges that plague patients with T1D, then suppressing glucagon secretion or blocking glucagon action should eliminate the surges of hyperglycemia observed in T1D in mice.

To measure the normal response of pancreatic islets to elevated glucose, pancreata were isolated from normal mice and perfused with 5 or 25 mM glucose. Glucagon concentrations were measured in the perfusate. Raising the glucose concentration fivefold decreased glucagon concentration in the perfusate approximately sixfold (Fig. 1A). To determine the effect of increased glucose concentration on glucagon secretion without paracrine insulin, we measured glucagon levels in the medium of cultured InR1-G9 α cells in 5, 10, and 25 mM glucose. The rise from 5 to 10 mM glucose caused an approximately threefold increase in glucagon secretion, and the rise from 10 to 25 mM caused another twofold rise (Fig. 1B). Because cultured cells may not reflect the behavior of native α cells in situ in T1D, we isolated pancreata from streptozotocin-induced insulin-deficient T1D rats and perfused them with 5, 10, and 25 mM glucose concentrations. When the perfusate glucose was increased from 5 to 10 mM, glucagon secretion increased fourfold (Fig. 1C). An increase in glucose from 10 to 25 mM increased glucagon secretion another fourfold. Insulin concentrations in all of these perfusates were below the detection limit of a radioimmune assay (RIA) (EMD Millipore). Previously, we reported that the streptozotocin treatment protocol we used resulted in the destruction of 93.4% of β cells (13).

Fig. 1.

Fig. 1.

Open in a new tab

In the absence of paracrine insulin, glucagon secretion increases in response to increases in glucose. (A) An increase from 5 to 25 mM in the glucose perfused into the isolated pancreata of nondiabetic mice causes profound suppression of glucagon secretion. n = 3. (B) In the absence of insulin, increasing glucose concentration progressively increases glucagon secretion by cultured InR1G9 α cells. n = 4. (C) Perfusing increasing glucose concentrations into pancreata of rats with streptozotocin-induced destruction of β cells causes progressive rise in glucagon secretion. n = 6. (D) Glucagon was measured in plasma collected twice daily (10:00 AM and 5:00 PM) from insulin-treated (0.1 U bid) mice with T1D. The average glucagon concentration, when blood glucose levels averaged 500 mg/dL (black bar) and when glucose levels averaged 130 mg/dL (white bar), are shown. The results are from 112 specimens collected from eight different mice. (E) The mean glucose measurements taken each day that were used to classify samples as high glucose or low glucose for D are presented. Error bars are SDs.

The fact that elevations of glucose stimulated glucagon secretion in the absence of an acute paracrine insulin release suggested that in animals with T1D, any rise in glucose would stimulate glucagon secretion and give rise to a cycle of self-enhancing hyperglycemia (3, 14). To investigate the possibility of such a diabetogenic pathway, we compared plasma glucagon levels in insulin-treated NOD/ShiLtJ T1D mice during and between hyperglycemic surges (Fig. 1D). The mice were treated with 0.1 U Levemir twice daily, and blood glucose was measured in the morning 17 h after an insulin injection (high blood glucose) and in the afternoon 7 h after an insulin injection (low blood glucose) (Fig. 1E). In mice receiving this insulin regimen, glucagon averaged 138 ± 41 pg/mL and insulin 3.9 ± 1.1 ng/mL in samples in which glucose averaged 500 ± 37 mg/dL This glucagon concentration was significantly higher (P < 0.05) than the mean glucagon level of 55 ± 35 pg/mL, measured in samples from the same mice when their glucose levels averaged 130 ± 71 mg/dL and insulin averaged 14.3 ± 4.5 ng/mL These findings are consistent with a glucagon-mediated contribution to the surges of hyperglycemia.

To assess directly the effect on the liver of the hyperglucagonemia accompanying hyperglycemia in the absence of endogenous insulin, we compared activation of key markers of glucagon action in liver. The phosphorylation of cAMP response element binding protein (CREB), a transducer of the glucagon signal, and the expression of a gluconeogenic glucagon target, phosphoenolpyruvate carboxykinase (PEPCK), were measured in T1D and nondiabetic mice. Compared with nondiabetic liver, there was a 3.5-fold elevation in phosphorylated CREB and a 2.5-fold increase in PEPCK expression in T1D livers (Fig. 2 A–C). To demonstrate that these differences were glucagon-mediated, we treated T1D mice with a single injection of 5 mg/kg mAb B (15), a fully human, antiglucagon receptor (GCGR) antibody drug candidate under development by REMD Biotherapeutics, Inc. (15–17). In mice treated with the monoclonal antibody mAb B, daily 10:00 AM blood glucose measurements averaged 85 ± 5 mg/dL and remained normoglycemic for 8 d (Fig. 2D), at which time livers were harvested. In the mAb B-treated T1D livers, phosphorylated CREB protein was reduced to nondiabetic levels and PEPCK protein expression was reduced below that of nondiabetic mice (Fig. 2 A–C). Thus, the activation of hepatic gluconeogenesis in T1D mice was a result of their hyperglucagonemia and disappeared when glucagon actions were blocked.

Fig. 2.

Fig. 2.

Open in a new tab

Glucagon action is chronically high in the livers of diabetic animals. (A) Hepatic markers of glucagon signaling (P-CREB) and of glucagon action (PEPCK) were measured by immunoblotting liver samples from nondiabetic and diabetic mice. (B) The ratio of activated P-CREB to total CREB protein was measured by densitometry of immunoblots of livers from nondiabetic mice (n = 2), untreated T1D mice (n = 3), and T1D mice (n = 4) treated with 5 mg antiglucagon receptor antibody mAb B. (C) Similar measurements were made of PEPCK protein in these specimens. (D) Blood glucose levels are plotted for T1D mice treated with buffer (n = 5) or 5 mg/kg anti-GCGR antibody mAb B (n = 6) for the time shown. Error bars in B–D are SDs.

If self-enhancing action of hyperglycemia is mediated by glucose-stimulated increase in glucagon in T1D, it follows that suppressing glucagon secretion should eliminate or reduce the problem. To test this, we placed T1D mice on a low dose of insulin (0.01 U twice daily) and then began continuous s.c. infusions of four peptides known to suppress glucagon directly or indirectly (18–22). A fifth, nonpeptidic suppressor (23), GABA, was given mixed in the chow. Each of the five reagents lowered glucagon levels, and in each case, this was accompanied by reduction of hyperglycemia from >600 mg/dL to 160 ± 75 mg/dL (P < 0.001; Fig. 3A). The average insulin concentrations in these samples were not correlated with either glucagon or glucose concentrations. With the exception of leptin, which reduced food intake by 50% compared with diabetic animals receiving insulin monotherapy, none of these glucagon suppressors caused a significant reduction in food intake.

Fig. 3.

Fig. 3.

Open in a new tab

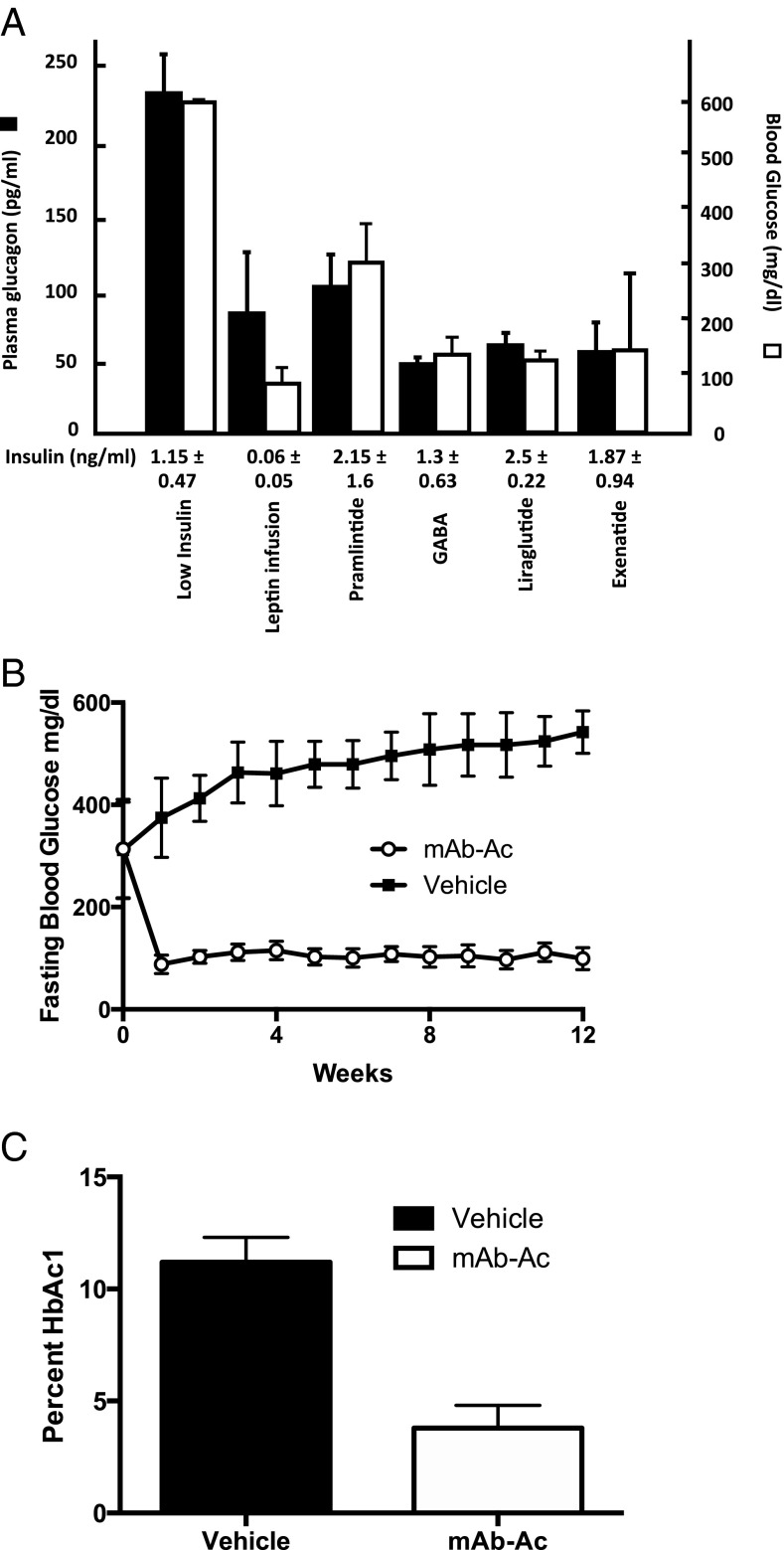

Agents that suppress glucagon secretion or antagonize GCGR normalize glucagon action in liver and plasma glucose in diabetic mice. (A) Plasma glucose and glucagon levels in diabetic NOD mice (n= 3–10) treated with the agents shown. (B) Blood glucose levels are plotted for chemically induced T1D mice treated with buffer (n = 10) or 7.5 mg/kg mAb Ac anti-GCGR antibody (n = 10) for the time shown. P < 0.01 comparing antibody to vehicle for all measurements from weeks 1–12. (C) HbA1c was measured, with a Toshiba TBA-40FR automated biochemical analyzer, in blood from the animals shown in B after 12 wk; average values are graphed. P < 0.01 comparing antibody to vehicle. Error bars are SDs.

If the glucose-lowering effects of glucagon suppressors resulted entirely from reduced glucagon secretion, rather than from off-target actions, therapy with a GCGR antibody should cause as dramatic an improvement as the glucagon-suppressing agents. Mice with chemically (streptozotocin)-induced T1D and a starting hyperglycemia of ∼325 ± 72 mg/dL were injected i.p. once each week with 7.5 mg/kg anti-GCGR antibody mAb Ac (15) (Fig. 3B), and blood glucose was measured weekly for 12 wk. Blood glucose concentrations returned to normal (∼90 mg/dL) in the mice treated with the antibody 1 wk after a single dose (first time point), and this normalization continued for the duration of treatment. Body weight did not change significantly between the control and antibody-treated groups of mice from the start to finish of the experiment. In the vehicle-treated control mice, blood glucose levels rose to 540 ± 70 mg/dL during the 12-wk study. At the end of this treatment, HbA1c was measured as an indication of chronic hyperglycemia. In the mice treated with mAb Ac, HbA1c levels were normal (4 ± 1%), whereas in the control mice, HbA1c averaged 11 ± 1% (Fig. 3C). GLP-1 averaged 3.64 ± 0.9 pmol/L in the control mice and 3.63 ± 0.52 pmol/L in the mice treated with antibody. By immunohistochemistry, the ratio of insulin-positive cells to glucagon-positive cells in islets observed in sections of pancreas taken from five control mice at the end of the study was 0.15, and using cells from five antibody treated mice, the ratio was 0.16. Because the ratio of β cells to α cells in wild-type mice is ∼6.0 (24), the ratios observed are those expected for severe ablation of β cells by streptozotocin. The fact that the ratio did not change between the two groups of animals indicates that the antibody treatment did not induce α-cell hyperplasia in this experiment.

Discussion

The present report provides the first evidence to our knowledge that acquired ablation, similar to congenital ablation of glucagon action, completely prevents the hyperglycemia and elevated HbA1c of T1D. Our work further supports the essential role of glucagon in the pathophysiology of diabetes, as was first proposed in 1975 (25). Subsequently, it was supported by demonstrations that diabetes was ameliorated by every glucagon suppressor used in every species tested. This included human T1D (26). Similarly, glucagon receptor antibodies have been shown to lower hyperglycemia in T2D (15), but this is the first demonstration, to our knowledge, of normalization of glycemia and HbA1c in complete insulin deficiency, a result that, to our knowledge, has never been achieved with existing therapies. Previous neutralization of glucagon itself reduced, but did not normalize, blood glucose levels (27–29). Synthetic glucagon receptor antagonists (30–33) similarly improved the diabetes but did not normalize it.

Despite the abundance of scientific support for glucagon’s central role in the disease, plus the calculation by Cahill that without glucagon the liver was incapable of producing hyperglycemia, the idea has persisted that insufficient insulin action, rather than excess glucagon action, causes diabetes. However, during the 9 decades of insulin therapy, it has become evident that correcting the deficit in insulin action cannot restore glucose homeostasis or HbA1c levels to normal, despite the hyperinsulinemia it induces. Incontrovertible evidence of glucagon essentiality to diabetes was recently reported in congenital glucagon receptor-null mice in which total insulin deficiency failed to raise blood glucose or glucose tolerance above normal (13). Now, in the present study, we show in genetically normal rodents that acquired loss of glucagon action caused by glucagon receptor immunoneutralization also prevents and reverses T1 diabetes.

This study also proposes a novel self-enhancing pathophysiologic pathway to severe hyperglycemia. In 1971, it was reported that without glucagon action, the liver cannot produce enough glucose to sustain hyperglycemia in insulin-deficient T1D mice. Here we present evidence for progressive enhancement of hyperglycemia by glucose-stimulated glucagon secretion that occurs when a blood glucose rise is unaccompanied by a physiologic rise in paracrine insulin. The anti-GCGR mAb Ac maintained normoglycemia and normalized HbA1c in severely insulin-deficient mice with impending diabetic ketoacidosis. Most remarkably, A1c normalization was achieved without inducing iatrogenic hyperinsulinemia (3), which may result in excess cardiovascular mortality (34). The antibody without any concomitant insulin administration completely prevented the T1D phenotype.

Thus, the metabolic phenotype of T1D can be eradicated by blocking glucagon action on the liver. The fact that the foregoing results were obtained in rodents raises the question of species differences from humans. Earlier work from our laboratory showed in human T1D that suppression of glucagon secretion with somatostatin eliminated postprandial hyperglycemic surges (26). This is evidence that the concept of antagonizing glucagon action as an effective therapy for diabetes will apply to humans. In any event, the approach of antagonizing the glucagon receptor for therapy in diabetes will need to be validated in human clinical studies.

Taken together, this suggests that insulin replacement therapy alone, without glucagon suppression by an agent other than insulin, is an incomplete strategy for regulating T1D. A more rational approach would be to first lower the unphysiologically high insulin doses now in common use (3) to doses that do not produce peripheral hyperinsulinemia and hypoglycemia. This lowering of insulin would increase glucagon and blood glucose levels, but both could be reduced by a glucagon-suppressing agent or by an anti-GCGR antibody, such as mAb B and mAb Ac.

Methods

Effect of Glucose on Glucagon Secretion by InR1-G9 Cells.

For the experiments shown in Fig. 1, InR1-G9 (35, 36) cells, obtained from J.P., were cultured at 37 °C in a humidified 5% (vol/vol) CO2 incubator in DMEM (high glucose) media, containing 10% (vol/vol) FBS, 50 U/mL penicillin, 50 mg/mL streptomycin, and 1 mmol/L sodium pyruvate, without insulin. Cells harvested from cultures lower than passage 25 were used. Cells were seeded into a 384-well culture plate at a density of 10,000 cells per well in a volume of 30 μL. After a 2 h incubation to allow the cells to attach to the plate, the medium was replaced with the desired concentration (5, 10, or 25 mmol/L) of glucose, and the cells were grown for 20 h at 37 °C. Five μL of a 1:1,000 dilution (in PBS) of a rabbit antiglucagon antibody was added to each well and incubated for 30 min. Next, 5 μL of 20 μg/mL (2 μg/mL final concentration) of AlphaLisa protein A conjugated acceptor beads (PerkinElmer) was added to each well and allowed to incubate for an additional 30 min. After incubation, a 1 nmol/L final concentration of biotinylated-glucagon (Anaspec; catalog number 60274-1) was added to each well and incubated for 60 min. Last, streptavidin-conjugated AlphaLisa donor beads were added to a final concentration of 8 μg beads/mL to give a final sample volume of 50 μL. The mixture was incubated at room temperature for 2 h. All additions and incubations were made in subdued lighting conditions according to the manufacturer’s instructions. The assay was measured on an Envision plate reader (PerkinElmer), and triplicate values were averaged.

Perfusion of Pancreata.

To determine the effects of high glucose on glucagon secretion by intact α cells in islets of rodents with T1D, six lean wild-type Zucker rats were treated twice with 100 mg streptozotocin 1 wk apart to induce severe T1D. Insulin in blood collected from animals treated with two doses of streptozotocin was undetectable by RIA. Seven days after the second dose of streptozotocin, they were fasted for 17 h and then anesthetized with 60 mg/kg body weight of sodium pentobarbital administered intraperitoneally. The pancreas was isolated and perfused in situ at 37 °C. The perfusate contained 1× KRB buffer (129 mmol/L NaCl, 4.8 mmol/L KCl, 0.2 mmol/L CaCl2, 1 mmol/L KH2PO4, 1 mmol/L MgSO4, 5 mmol/L NaHCO3) plus D-glucose at 5, 10, or 25 mmol/L concentration. Perfusates were supplemented with 0.5% (wt/vol) bovine albumin fraction V and gassed for 30 min with 95% (vol/vol) O2 and 5% (vol/vol) CO2 at 37 °C. Perfusate flow rate was maintained at 4 mL/min. After a 10-min equilibration period with 5 mmol/L D-glucose, glucose was increased to 10 mmol/L for 10 min and to 25 mmol/L for another 10 min. The temperature was kept constant at 37 °C. The effluent samples were collected from the portal vein, without recycling, into prechilled tubes containing 25 mmol/L EDTA and aprotinin, and frozen at −20 °C for later use. The concentrations of glucagon and insulin were measured by RIA (catalog numbers GL-32K and RI-13K; EMD Millipore), according to the manufacturer’s instructions. For measurements on normal rodents, pancreata from C57BL/6N mice from Charles River Laboratories International were perfused by the protocol described here for rats.

Glucagon Suppression in Vivo in Mice with T1D.

Eight-week-old NOD (NOD/ShiLtJ) female mice from the Jackson Laboratory that had developed diabetes were assigned to one of three groups: insulin monotherapy (0.1 U twice daily at 10:00 AM and 5:00 PM), reduced insulin monotherapy (0.01 U twice daily at 10:00 AM and 5:00 PM), and reduced insulin therapy plus a glucagon suppressor. Miniosmotic pumps (ALZET model 2001; ALZET Osmotic Pumps) were implanted between the scapulae under ketamine/xylazine anesthesia (0.1 mL per 20–30 g body weight). The pumps delivered agents at a rate of 1 μL/h during a 7-d period and were replaced every 7 d. They were loaded with various known or suspected glucagon suppressors, including recombinant leptin at 20 mg/mL (Amylin Pharmaceuticals, Inc.), pramlintide acetate at 1 g/mL (Amylin Pharmaceuticals, Inc.), 6 mg/mL liraglutide (Novo Nordisk A/S), 250 mg/mL exenatide (Amylin Pharmaceuticals, Inc.). An untreated control group received PBS delivered by Alzet pump, plus twice daily s.c. injections of 0.01 U of the long-acting insulin analog (Levemir U-100; Novo Nordisk) administered at 10:00 AM and 5:00 PM. An additional group of mice received 0.01 U Levemir injected twice daily plus the orally effective (23) glucagon suppressor GABA (catalog number A-2129; Sigma) mixed with the powdered food [4% (wt/wt) fat]. Food intake, body weight, and blood glucose were monitored daily. Blood samples were obtained at 10:00 AM, 1:00 PM, and 5:00 PM. Insulin was administered twice daily at 10:00 AM and 5:00 PM, after obtaining the blood glucose specimen. For all animal experiments, principles of laboratory animal care (NIH publication no. 85–23, revised 1985) were followed according to protocols reviewed and approved by the University of Texas Southwestern Medical Center Institutional Animal Care and Use Committee.

Treatment of NOD Mice with Monoclonal Antiglucagon Receptor Antibodies.

The two monoclonal antibodies used differ by only one amino acid not involved in glucagon binding and have equivalent affinities for glucagon (15). Diabetic NOD mice were injected s.c. with buffer (control, n = 5) or buffer containing 5 mg/kg mAb B monoclonal antibody to the GCGR (n = 6), and blood glucose concentration was monitored daily for 8 d. Male Balb/C mice at 8–10 wk of age were injected IP with 60 mg/kg streptozotocin daily for 5 consecutive days, and after 14 d, were injected with vehicle (control = 10) or 7.5 mg/kg mAb Ac (n = 10) weekly for 12 wk. Fasting blood glucose levels were measured weekly. After 12 wk, blood HgA1c was measured in fresh whole blood with a Toshiba TBA-40FR auto-analyzer.

Plasma Measurements.

Blood samples (100 µL) were collected in tubes containing 0.15 TIU/mL aprotinin and 10 mmol/L EDTA. Samples were centrifuged, and aliquots of plasma were frozen at −20 °C. Plasma glucagon was measured using a rodent glucagon RIA kit (Linco Research). Mouse plasma insulin was measured by an ELISA kit (Crystal Chem, Inc.).

Immunoblotting Analysis.

Total protein extracts prepared from liver tissues of NOD mice with or without the treatment of glucagon suppressors were resolved by SDS/PAGE and transferred to a nitrocellulose membrane (Bio-Rad Laboratories). The blotted membrane was blocked in 1× Tris-buffered saline (TBS) containing 0.1% Tween and 5% (wt/vol) nonfat dry milk (TBST-MLK) for 1 h at room temperature with gentle, constant agitation. After incubation with primary antibodies anti-phospho-CREB, anti-CREB, or anti-PEPCK (Cell Signaling Technologies), or anti-γ-tubulin (Sigma) in freshly prepared TBST-MLK at 4 °C overnight with agitation, the membrane was washed two times with TBST buffer. This was followed by incubating with secondary anti-rabbit or mouse horseradish peroxidase-conjugated Ig antibodies in TBST-MLK for 1 h at room temperature with agitation. The membrane was then washed three times with TBST buffer, and the proteins of interest on immunoblots were detected by an ECL plus Western blotting detection system (GE Healthcare Life Sciences). The corresponding bands were quantified using NIH Image software (version 1.6; available at rsb.info.nih.gov/nih-image).

Histochemistry.

The pancreas was removed from five control and five test animals at the end of the experiment shown in Fig. 3B and fixed in 4% (vol/vol) formaldehyde overnight, then embedded in paraffin, and each entire pancreas was sectioned. Paraffin was removed from the sections with xylene, and the sections were rehydrated through a graded series of alcohol in water. Sections were treated with 3% (vol/vol) H2O2 for 10 min to block endogenous peroxidase activity, and in 10% (vol/vol) goat serum for 30 min to block nonspecific antibody binding. Sections were then incubated sequentially with rabbit anti-glucagon antibody (Abcam, ab18461) and biotinylated goat anti-rabbit IgG (Abcam, ab97049) and detected with ABC-HRP Kit (Vector Laboratories, pk-4100) and DAB peroxidase substrate kit (Vector Laboratories, sk-4100), according to the manufacturer’s instructions. Sections were then incubated with guinea pig antiinsulin antibody (Abcam, ab7842) and biotinylated goat anti-guinea pig IgG (Abcam, ab6907), and the antibody was detected with ABC-AP Kit (Vector Laboratories, ak-5000) and Red Alkaline Phosphatase Substrate Kit III (Vector Laboratories, sk-5100). Sections were counterstained with hematoxylin for 15 s, rinsed in water, and dehydrated through graded solutions from 70% (vol/vol) to 100% ethanol and then into 100% xylene. Sections were mounted in Permount (Fisher, SP15-100), dried, and observed by microscopy. Pancreatic islets in pancreas sections were captured at a magnification of 200×, and the positive labeled cells in all islets were evaluated. The total area containing insulin-positive and glucagon-positive cells (islet) was measured, as was the area of individual cells stained with each marker within each islet. Dividing the area of positive cells for insulin or glucagon by the total area per islet ×100% gives the percentage of each cell type in each islet.

Statistical Analysis.

Results are presented as mean ± SEM and were evaluated by Student's t test for two groups or by ANOVA. For histochemistry, one-way ANOVA testing (SPSS 17.0) was applied among the groups; P < 0.05 was accepted as significant.

Acknowledgments

We acknowledge the help of Dr. Jaime Davison and Ms. Kay McCorkle with these studies. We also appreciate the support of REMD Biotherapeutics, Inc., which provided a research grant and the fully human anti-GCGR antibodies mAb Ac and mAb B, under a Sponsored Research Agreement in June 2014 between REMD Biotherapeutics, Inc., and the University of Texas Southwestern Medical Center. This research was also funded in part by the Veterans Affairs North Texas Health Care System, Dallas, Texas, by a grant from Bristol-Myer Squibb (to R.H.U.), and by the Diane and Hal Brierley Chair in Biomedical Research (M.G.R.). R.H.U. and M.G.R. are founding partners of SynAlpha Therapeutics, LLC. Part of the work was conducted in a facility supported by Grant C06-RR15437 from the National Center for Research Resources (to M.G.R.). The streptozotocin -diabetic mouse study was conducted by Pharmaron in Beijing under a service contract with REMD Biotherapeutics, Inc.

Footnotes

The authors declare no conflict of interest.

References

  • 1.Derr R, Garrett E, Stacy GA, Saudek CD. Is HbA(1c) affected by glycemic instability? Diabetes Care. 2003;26(10):2728–2733. doi: 10.2337/diacare.26.10.2728. [DOI] [PubMed] [Google Scholar]
  • 2.Kozawa J, et al. Early postprandial glucagon surge affects postprandial glucose levels in obese and non-obese patients with type 2 diabetes. Endocr J. 2013;60(6):813–818. doi: 10.1507/endocrj.ej13-0018. [DOI] [PubMed] [Google Scholar]
  • 3.Wang M-Y, et al. Iatrogenic hyperinsulinemia in type 1 diabetes: Its effect on atherogenic risk markers. J Diabetes Complications. 2013;27(1):70–74. doi: 10.1016/j.jdiacomp.2012.08.008. [DOI] [PubMed] [Google Scholar]
  • 4.Maruyama H, Hisatomi A, Orci L, Grodsky GM, Unger RH. Insulin within islets is a physiologic glucagon release inhibitor. J Clin Invest. 1984;74(6):2296–2299. doi: 10.1172/JCI111658. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 5.Müller WA, Faloona GR, Unger RH. The effect of experimental insulin deficiency on glucagon secretion. J Clin Invest. 1971;50(9):1992–1999. doi: 10.1172/JCI106691. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 6.Unger RH, Orci L. Paracrinology of islets and the paracrinopathy of diabetes. Proc Natl Acad Sci USA. 2010;107(37):16009–16012. doi: 10.1073/pnas.1006639107. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 7.Moore MC, Coate KC, Winnick JJ, An Z, Cherrington AD. Regulation of hepatic glucose uptake and storage in vivo. Adv Nutr. 2012;3(3):286–294. doi: 10.3945/an.112.002089. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 8.Unger RH, Cherrington AD. Glucagonocentric restructuring of diabetes: A pathophysiologic and therapeutic makeover. J Clin Invest. 2012;122(1):4–12. doi: 10.1172/JCI60016. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 9.Unger RH, Roth MG. A New Biology of Diabetes Revealed by Leptin. Cell Metab. 2015;21(1):15–20. doi: 10.1016/j.cmet.2014.10.011. [DOI] [PubMed] [Google Scholar]
  • 10.Braaten JT, Faloona GR, Unger RH. The effect of insulin on the alpha-cell response to hyperglycemia in long-standing alloxan diabetes. J Clin Invest. 1974;53(4):1017–1021. doi: 10.1172/JCI107638. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 11.Jamison RA, et al. Hyperglucagonemia precedes a decline in insulin secretion and causes hyperglycemia in chronically glucose-infused rats. Am J Physiol Endocrinol Metab. 2011;301(6):E1174–E1183. doi: 10.1152/ajpendo.00175.2011. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 12.Cherrington AD, Lacy WW, Chiasson JL. Effect of glucagon on glucose production during insulin deficiency in the dog. J Clin Invest. 1978;62(3):664–677. doi: 10.1172/JCI109174. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 13.Lee Y, Wang MY, Du XQ, Charron MJ, Unger RH. Glucagon receptor knockout prevents insulin-deficient type 1 diabetes in mice. Diabetes. 2011;60(2):391–397. doi: 10.2337/db10-0426. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 14.Wang MY, et al. Leptin therapy in insulin-deficient type I diabetes. Proc Natl Acad Sci USA. 2010;107(11):4813–4819. doi: 10.1073/pnas.0909422107. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 15.Yan H, et al. Fully human monoclonal antibodies antagonizing the glucagon receptor improve glucose homeostasis in mice and monkeys. J Pharmacol Exp Ther. 2009;329(1):102–111. doi: 10.1124/jpet.108.147009. [DOI] [PubMed] [Google Scholar]
  • 16.Gu W, et al. Glucagon receptor antagonist-mediated improvements in glycemic control are dependent on functional pancreatic GLP-1 receptor. Am J Physiol Endocrinol Metab. 2010;299(4):E624–E632. doi: 10.1152/ajpendo.00102.2010. [DOI] [PubMed] [Google Scholar]
  • 17.Gu W, et al. Long-term inhibition of the glucagon receptor with a monoclonal antibody in mice causes sustained improvement in glycemic control, with reversible alpha-cell hyperplasia and hyperglucagonemia. J Pharmacol Exp Ther. 2009;331(3):871–881. doi: 10.1124/jpet.109.157685. [DOI] [PubMed] [Google Scholar]
  • 18.Fineman MS, et al. The human amylin analog, pramlintide, corrects postprandial hyperglucagonemia in patients with type 1 diabetes. Metabolism. 2002;51(5):636–641. doi: 10.1053/meta.2002.32022. [DOI] [PubMed] [Google Scholar]
  • 19.Nielsen LL, Young AA, Parkes DG. Pharmacology of exenatide (synthetic exendin-4): A potential therapeutic for improved glycemic control of type 2 diabetes. Regul Pept. 2004;117(2):77–88. doi: 10.1016/j.regpep.2003.10.028. [DOI] [PubMed] [Google Scholar]
  • 20.Nauck MA, Meier JJ. Glucagon-like peptide 1 and its derivatives in the treatment of diabetes. Regul Pept. 2005;128(2):135–148. doi: 10.1016/j.regpep.2004.07.014. [DOI] [PubMed] [Google Scholar]
  • 21.Berglund ED, et al. Fibroblast growth factor 21 controls glycemia via regulation of hepatic glucose flux and insulin sensitivity. Endocrinology. 2009;150(9):4084–4093. doi: 10.1210/en.2009-0221. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 22.Kharitonenkov A, et al. The metabolic state of diabetic monkeys is regulated by fibroblast growth factor-21. Endocrinology. 2007;148(2):774–781. doi: 10.1210/en.2006-1168. [DOI] [PubMed] [Google Scholar]
  • 23.Xu E, et al. Intra-islet insulin suppresses glucagon release via GABA-GABAA receptor system. Cell Metab. 2006;3(1):47–58. doi: 10.1016/j.cmet.2005.11.015. [DOI] [PubMed] [Google Scholar]
  • 24.Kim A, et al. Islet architecture: A comparative study. Islets. 2009;1(2):129–136. doi: 10.4161/isl.1.2.9480. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 25.Unger RH, Orci L. The essential role of glucagon in the pathogenesis of diabetes mellitus. Lancet. 1975;1(7897):14–16. doi: 10.1016/s0140-6736(75)92375-2. [DOI] [PubMed] [Google Scholar]
  • 26.Raskin P, Unger RH. Hyperglucagonemia and its suppression. Importance in the metabolic control of diabetes. N Engl J Med. 1978;299(9):433–436. doi: 10.1056/NEJM197808312990901. [DOI] [PubMed] [Google Scholar]
  • 27.Brand CL, et al. Immunoneutralization of endogenous glucagon with monoclonal glucagon antibody normalizes hyperglycaemia in moderately streptozotocin-diabetic rats. Diabetologia. 1994;37(10):985–993. doi: 10.1007/BF00400461. [DOI] [PubMed] [Google Scholar]
  • 28.Sørensen H, et al. Immunoneutralization of endogenous glucagon reduces hepatic glucose output and improves long-term glycemic control in diabetic ob/ob mice. Diabetes. 2006;55(10):2843–2848. doi: 10.2337/db06-0222. [DOI] [PubMed] [Google Scholar]
  • 29.Vater A, et al. A mixed mirror-image DNA/RNA aptamer inhibits glucagon and acutely improves glucose tolerance in models of type 1 and type 2 diabetes. J Biol Chem. 2013;288(29):21136–21147. doi: 10.1074/jbc.M112.444414. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 30.Mu J, et al. Chronic treatment with a glucagon receptor antagonist lowers glucose and moderately raises circulating glucagon and glucagon-like peptide 1 without severe alpha cell hypertrophy in diet-induced obese mice. Diabetologia. 2011;54(9):2381–2391. doi: 10.1007/s00125-011-2217-2. [DOI] [PubMed] [Google Scholar]
  • 31.Mu J, et al. Anti-diabetic efficacy and impact on amino acid metabolism of GRA1, a novel small-molecule glucagon receptor antagonist. PLoS ONE. 2012;7(11):e49572. doi: 10.1371/journal.pone.0049572. [DOI] [PMC free article] [PubMed] [Google Scholar]
  • 32.Shen DM, et al. Discovery of novel, potent, and orally active spiro-urea human glucagon receptor antagonists. Bioorg Med Chem Lett. 2005;15(20):4564–4569. doi: 10.1016/j.bmcl.2005.06.101. [DOI] [PubMed] [Google Scholar]
  • 33.Winzell MS, et al. Glucagon receptor antagonism improves islet function in mice with insulin resistance induced by a high-fat diet. Diabetologia. 2007;50(7):1453–1462. doi: 10.1007/s00125-007-0675-3. [DOI] [PubMed] [Google Scholar]
  • 34.Lind M, et al. Glycemic control and excess mortality in type 1 diabetes. N Engl J Med. 2014;371(21):1972–1982. doi: 10.1056/NEJMoa1408214. [DOI] [PubMed] [Google Scholar]
  • 35.Takaki R, et al. Isolation of glucagon-secreting cell lines by cloning insulinoma cells. In Vitro Cell Dev Biol. 1986;22(3 Pt 1):120–126. doi: 10.1007/BF02623498. [DOI] [PubMed] [Google Scholar]
  • 36.Drucker DJ, Philippe J, Mojsov S. Proglucagon gene expression and posttranslational processing in a hamster islet cell line. Endocrinology. 1988;123(4):1861–1867. doi: 10.1210/endo-123-4-1861. [DOI] [PubMed] [Google Scholar]
