These are Klaus Dormann's 6502 functional and 65C02 extended opcodes tests. Also included are Bruce Clark's 6502 decimal tests. These tests are as edited by amb5l to build correctly using cc65's assembler and linker for Windows.

An NMake build task is provided. Just open the project in VS Code and press shift-ctl-B to build it.

You may need to modify tasks.json and Makefile if you use different build tools.

The project assumes your CC65 executables are located in c:\cc65. If this isn't the case you'll need to edit the E variable in the Makefile.

Three launch configurations are provided:

• Launch 6502 tests
• Launch 65C02 tests
• Launch decimal tests

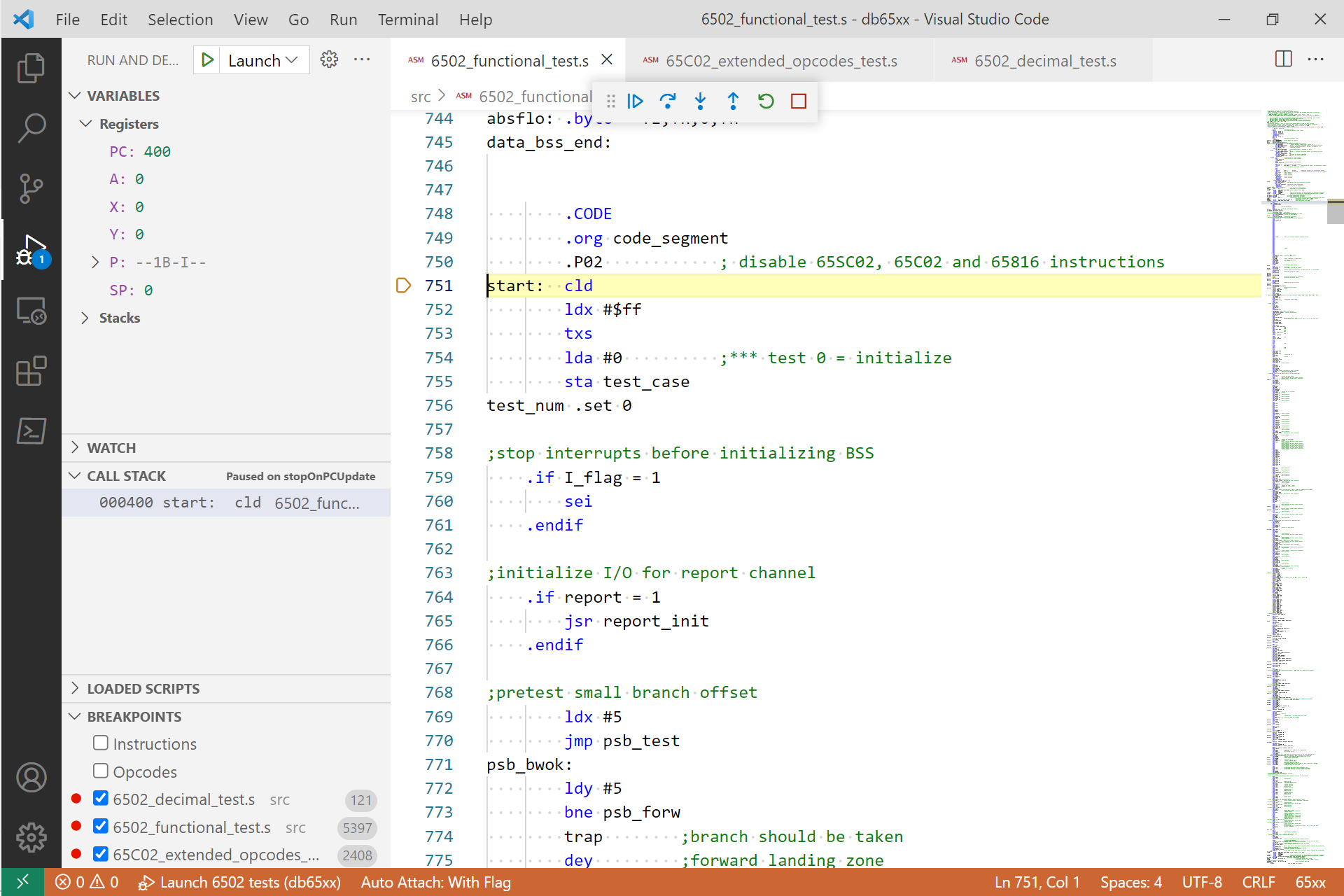

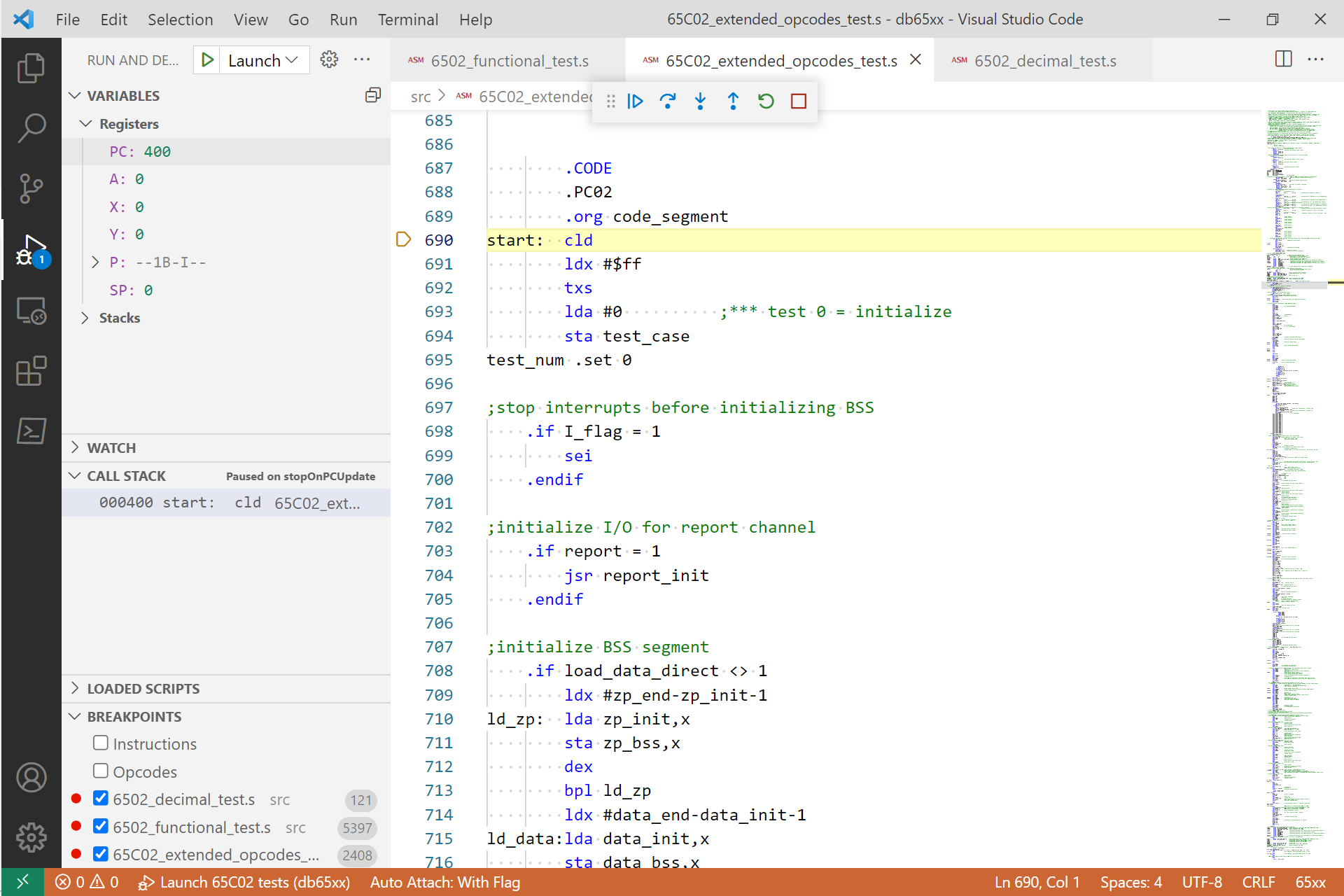

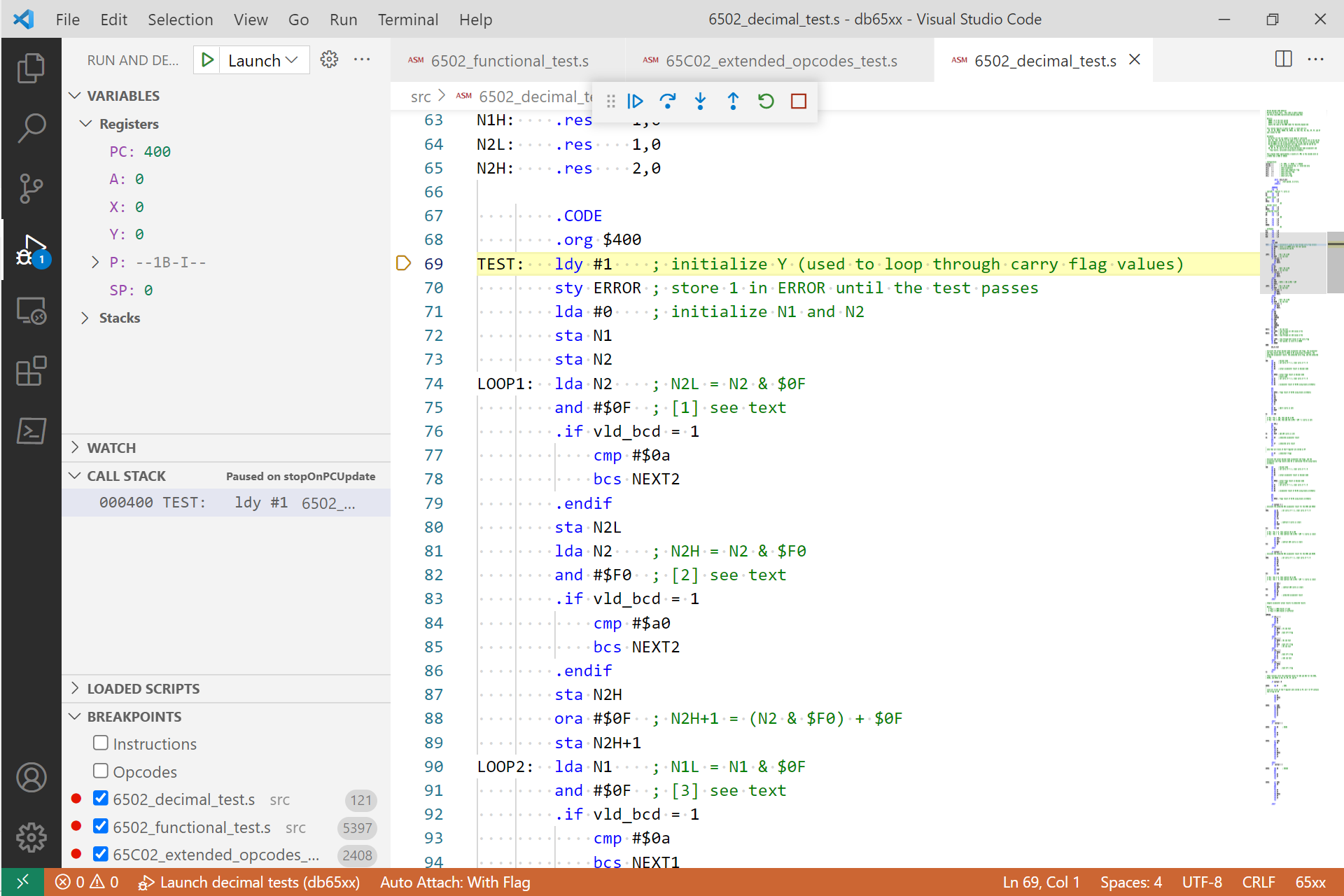

Select the tests you want to run in the Run and Debug pane and start debugging with F5. The tests will open to the RESET vector. To run the tests, change the program counter, PC (in the Variables pane or Debug Console), to 0x400 and press F5 or click the Continue button.

The tests don't give any outward indication that they've completed. I recommend setting a breakpoint for each test as follows:

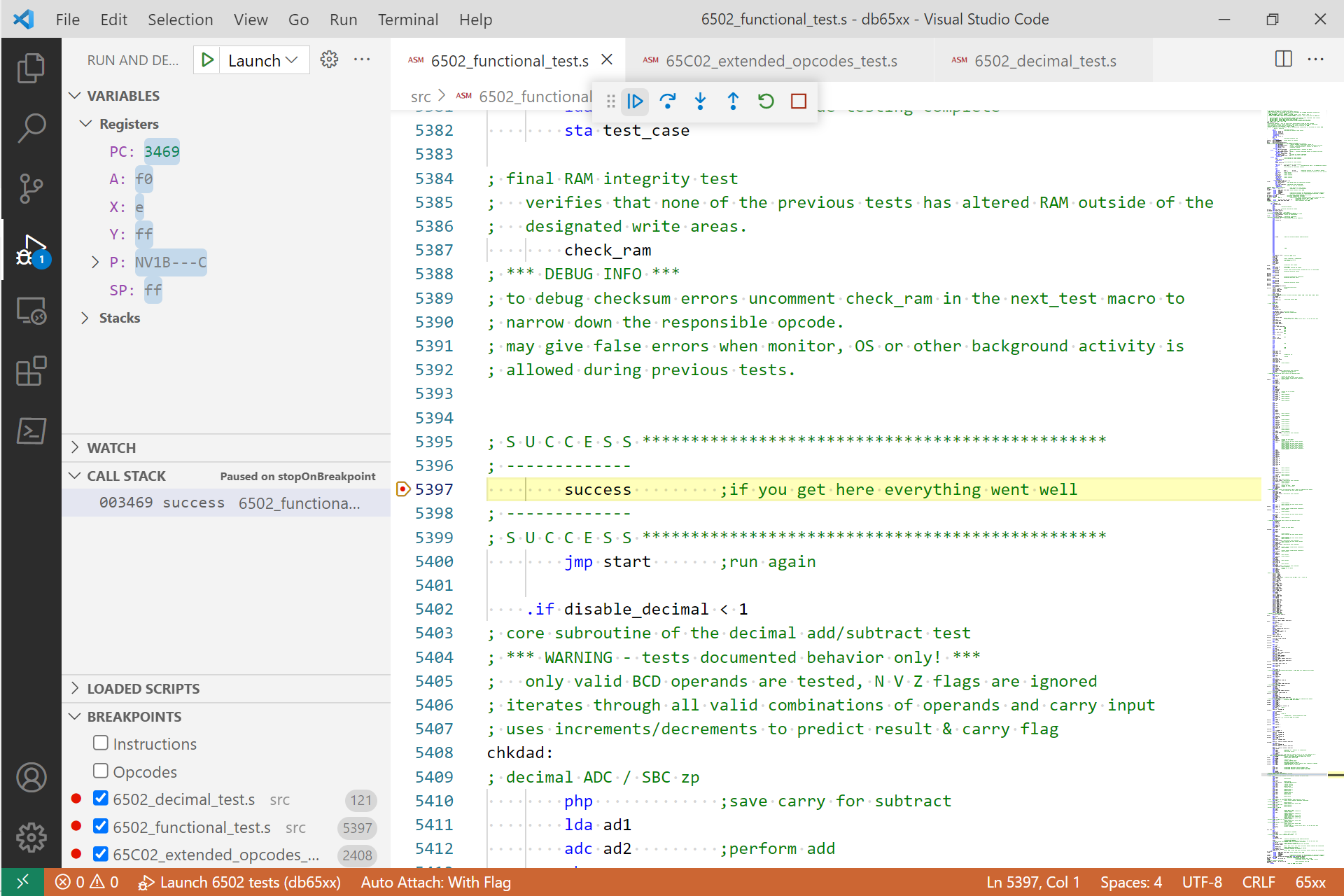

• 6502_functional_test.s: line 5397

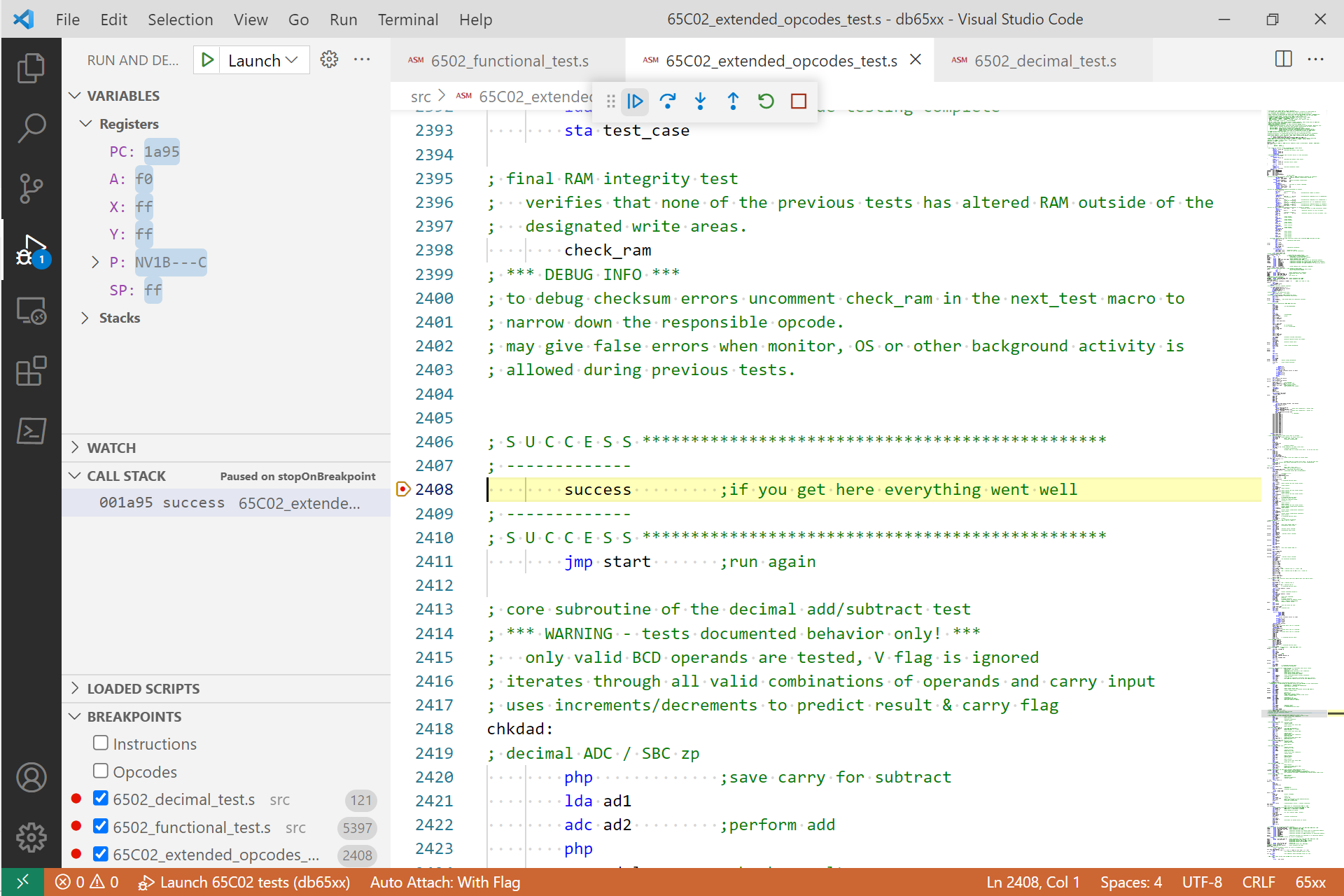

• 65C02_extended_opcodes_test.s: line 2408

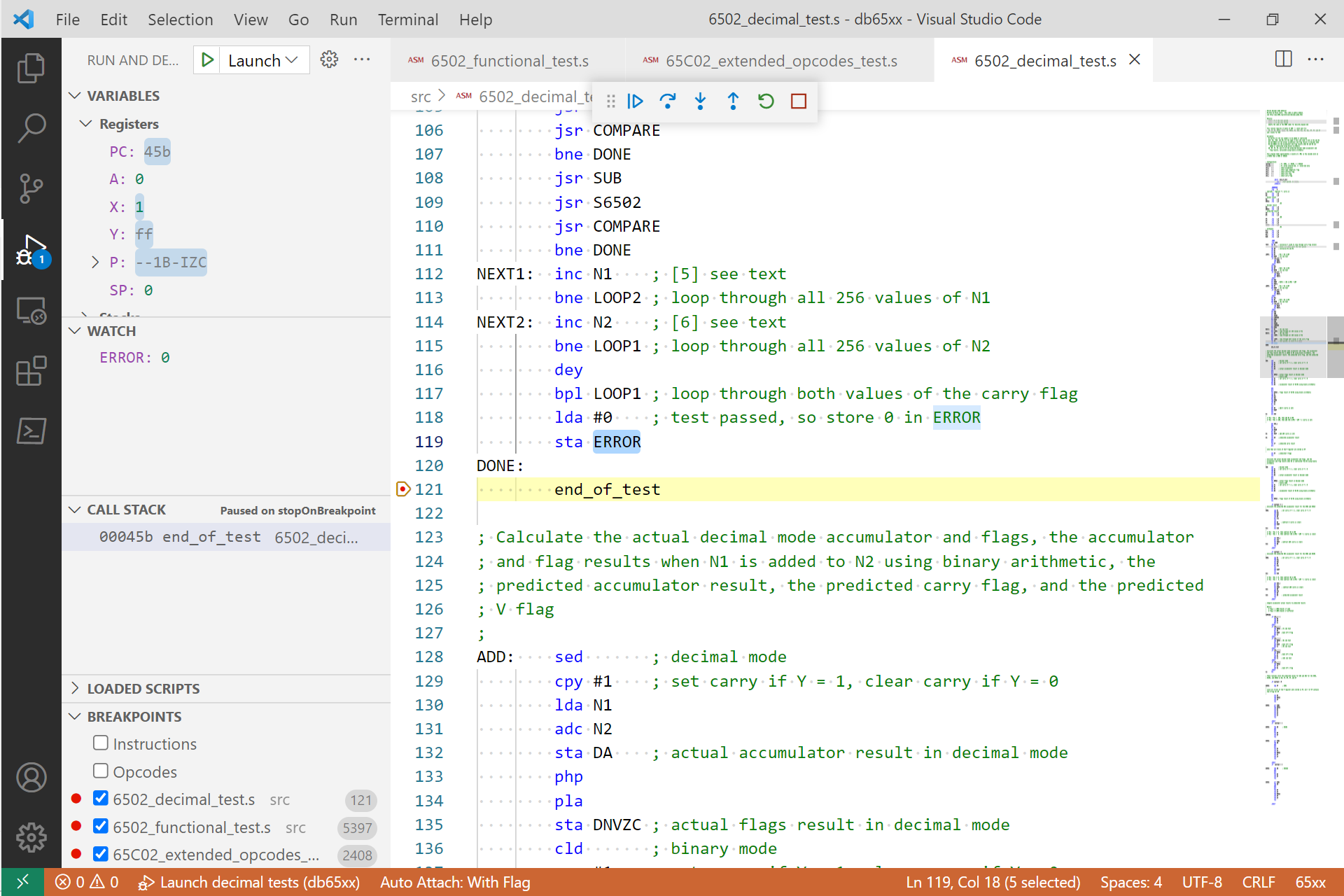

• 6502_decimal_test.s: line 121

The 6502 functional and 65C02 extended opcodes tests complete successfully if you hit the breakpoint. The 6502 decimal tests complete successfully if the ERROR variable is zero when you've hit the breakpoint.

The tests complete as follows on my modest tablet PC:

• 6502_functional_test.s: 40 seconds
• 65C02_extended_opcodes_test.s: 28 seconds
• 6502_decimal_test.s: 4 seconds

If your tests don't complete in a reasonable time, you likely have a problem with your build.

1. As mentioned in the db65xx README, execution of invalid opcodes on the 65C02 and 6502 cores throw an exception. As such, I've disabled the NOP tests for these opcodes.
2. I've configured the decimal tests for the 65C02 and only for valid BCD values. I've also disabled testing the overflow flag as it really isn't applicable in decimal mode. If your code uses the overflow flag in decimal mode then you'll probably want to use a different simulator.
